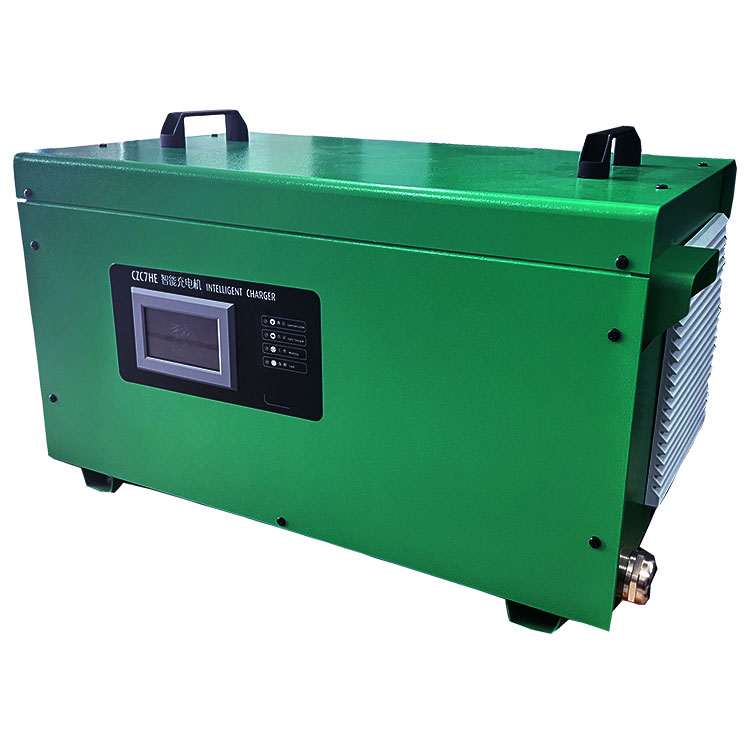

The CZC7HE integrated vehicle DC charger is mainly used for fast charging of high-voltage lithium battery forklifts, electric vehicles and other electric vehicles. This product is installed outdoors, waterproof and dustproof design, with protection grade IP54. This product integrates the charger, charging interface, human-computer interaction interface, communication, billing and other parts into a whole. It adopts a modular design and has the characteristics of convenient installation and debugging, simple operation and maintenance, etc. It is an ideal choice for high-voltage lithium battery forklifts, electric vehicles and other electric vehicles. Ideal for outdoor DC fast charging of vehicles.

CZC7HE Lithium Battery Charger overview

CZC7HE integrated vehicle DC charger is mainly used for fast charging of high-voltage lithium forklift, electric vehicle and other electric vehicles. The product is installed outdoors, with waterproof and dustproof design, and the protection grade is IP54. This product integrates the charger, charging interface, human-computer interaction interface, communication, billing and other parts into a whole, adopts modular design, and has the characteristics of convenient installation and debugging, simple operation and maintenance. It is an ideal choice for outdoor DC fast charging of high-voltage lithium forklift, electric vehicles and other electric vehicles.

Main Characters

The charging equipment adopts multiple high-frequency switching power modules for parallel redundant backup operation to form a high-power charging system. The current sharing unbalance between modules is less than 5%, which is characterized by high reliability and easy maintenance;

The efficiency of the whole vehicle charging system is above 93%;

Sectional constant power design, wide range setting of output voltage and current, can greatly improve the charging speed, fast charging and slow charging can be freely selected;

The power module has its own standard isolated CAN communication port which is used to communicate with the main controller;

The charging system is equipped with an independent monitor to exchange information with the human-computer interface and the upper computer, and monitor the system operation;
The human-computer interaction interface adopts high-performance ARM chip and 7-inch true color touch screen, with humanized design and simple and convenient operation; The human-computer interaction interface is connected with the battery management unit (BMS) or on-board instrument through the CAN bus, and operates according to the given parameters of the battery inspection (BMS), sets different charging operation modes, and realizes rapid charging;

Complete protection functions, such as AC over-voltage undervoltage protection, DC output over-voltage undervoltage protection, output current limiting over-current protection, over temperature protection, etc;
